ESP32 사용 기초(WIFI, LCD연결)

1. ESP32 시작하기

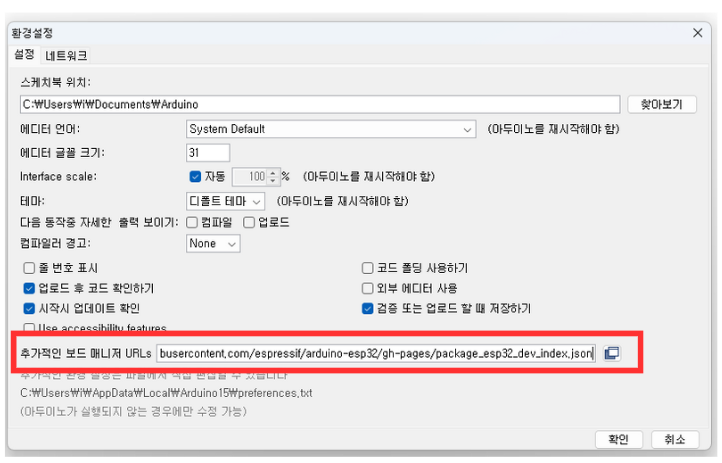

https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_dev_index.json

그림과 같이 입력하고 "확인"을 클릭 합니다



- 툴->보드메니저 선택





- "esp32"를 입력하고 설치





- ESP32 Dev Module선택





2. WiFi 찾기

/* ESP32 WiFi Scanning example */

#include "WiFi.h"

void setup() {
  Serial.begin(115200);
  Serial.println("Initializing WiFi...");
  WiFi.mode(WIFI_STA);
  Serial.println("Setup done!");
}

void loop() {
  Serial.println("Scanning...");

  // WiFi.scanNetworks will return the number of networks found
  int n = WiFi.scanNetworks();
  Serial.println("Scan done!");
  if (n == 0) {
    Serial.println("No networks found.");
  } else {
    Serial.println();
    Serial.print(n);
    Serial.println(" networks found");
    for (int i = 0; i < n; ++i) {
      // Print SSID and RSSI for each network found
      Serial.print(i + 1);
      Serial.print(": ");
      Serial.print(WiFi.SSID(i));
      Serial.print(" (");
      Serial.print(WiFi.RSSI(i));
      Serial.print(")");
      Serial.println((WiFi.encryptionType(i) == WIFI_AUTH_OPEN) ? " " : "*");
      delay(10);
    }
  }
  Serial.println("");

  // Wait a bit before scanning again
  delay(5000);
}



- 결과(이때 보드레이트를 115200으로 맞춰야함)



3. LCD연결하기

- 회로도

- 참고 : https://wokwi.com/projects/321525495180034642

ESP32 NTP Example.ino - Wokwi ESP32, STM32, Arduino Simulator

LCD핀 위부터 순서대로 GND, 3V, 21, 22에 연결하면 됨



- 소스코드

/*********
  Rui Santos
  Complete project details at https://randomnerdtutorials.com
*********/

#include <Wire.h>

void setup() {
  Wire.begin();
  Serial.begin(115200);
  Serial.println("\nI2C Scanner");
}

void loop() {
  byte error, address;
  int nDevices;
  Serial.println("Scanning...");
  nDevices = 0;
  for(address = 1; address < 127; address++ ) {
    Wire.beginTransmission(address);
    error = Wire.endTransmission();
    if (error == 0) {
      Serial.print("I2C device found at address 0x");
      if (address<16) {
        Serial.print("0");
      }
      Serial.println(address,HEX);
      nDevices++;
    }
    else if (error==4) {
      Serial.print("Unknow error at address 0x");
      if (address<16) {
        Serial.print("0");
      }
      Serial.println(address,HEX);
    }
  }
  if (nDevices == 0) {
    Serial.println("No I2C devices found\n");
  }
  else {
    Serial.println("done\n");
  }
  delay(5000);
}



- 결과

4. LCD를 활용한 시계만들기

- 참고

https://wokwi.com/projects/321525495180034642

ESP32 NTP Example.ino - Wokwi ESP32, STM32, Arduino Simulator



- 회로도



- 소스코드

// Learn about the ESP32 WiFi simulation in
// https://docs.wokwi.com/guides/esp32-wifi

#include <WiFi.h>
#include <Wire.h>
#include <LiquidCrystal_I2C.h>

LiquidCrystal_I2C LCD = LiquidCrystal_I2C(0x27, 16, 2);

#define NTP_SERVER     "pool.ntp.org"
#define UTC_OFFSET     0
#define UTC_OFFSET_DST 0

void spinner() {
  static int8_t counter = 0;
  const char* glyphs = "\xa1\xa5\xdb";
  LCD.setCursor(15, 1);
  LCD.print(glyphs[counter++]);
  if (counter == strlen(glyphs)) {
    counter = 0;
  }
}

void printLocalTime() {
  struct tm timeinfo;
  if (!getLocalTime(&timeinfo)) {
    LCD.setCursor(0, 1);
    LCD.println("Connection Err");
    return;
  }

  LCD.setCursor(8, 0);
  LCD.println(&timeinfo, "%H:%M:%S");

  LCD.setCursor(0, 1);
  LCD.println(&timeinfo, "%d/%m/%Y   %Z");
}

void setup() {
  Serial.begin(115200);
  Wire.begin(21, 22);
  LCD.init();
  LCD.backlight();
  LCD.setCursor(0, 0);
  LCD.print("Connecting to ");
  LCD.setCursor(0, 1);
  LCD.print("WiFi ");

  WiFi.begin("Wokwi-GUEST", "", 6);
  while (WiFi.status() != WL_CONNECTED) {
    delay(250);
    spinner();
  }

  Serial.println("");
  Serial.println("WiFi connected");
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());

  LCD.clear();
  LCD.setCursor(0, 0);
  LCD.println("Online");
  LCD.setCursor(0, 1);
  LCD.println("Updating time...");

  configTime(UTC_OFFSET, UTC_OFFSET_DST, NTP_SERVER);
}

void loop() {
  printLocalTime();
  delay(250);
}



- 결과
